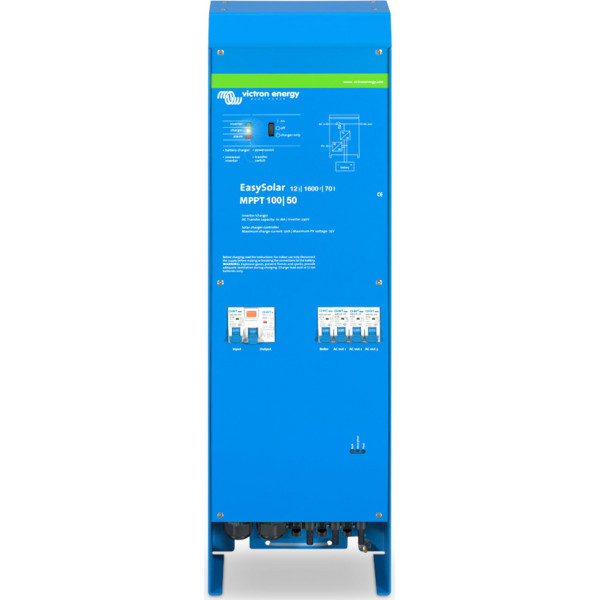

Victron Energy EasySolar 12/1600/70-16 MPPT 100/50
- Brand: Victron Energy
- Estimated Delivery 5 - 10 Working Days
- Product Code: CEP121621000
- Reward Points: 1331
Price: £1,319.56
Price in reward points: 133056
Price in reward points: 133056
Qty:
- OR -
Add to Build List
Add to Compare
Add to Compare
The Victron Energy Description:
The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
Technical Features
All-in-one solar power solution
The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers.
One 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application software
Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.
| Specification | |
| Brand | Victron Energy |
| Part No | CEP121621000 |
| Voltage (V) | 12 |
| Max Solar Array 12V (W) | 700 |
| Continuous Output (VA) | 1600 |
| Continuous Output (W) | 1300 |
| Peak Power (W) | 3000 |
| Charge Current House Battery (A) | 70 |
| Battery Temperature Sensor | Yes |
| Transfer Switch (A) | 16 |
| Programmable Relay | Yes |
| Weight (kg) | 12 |
| Dimensions | L745 x W214 x H110mm |
| IP Rating | IP22 |
| Warranty | 5 Years |
| Country of Manufacture | China |
